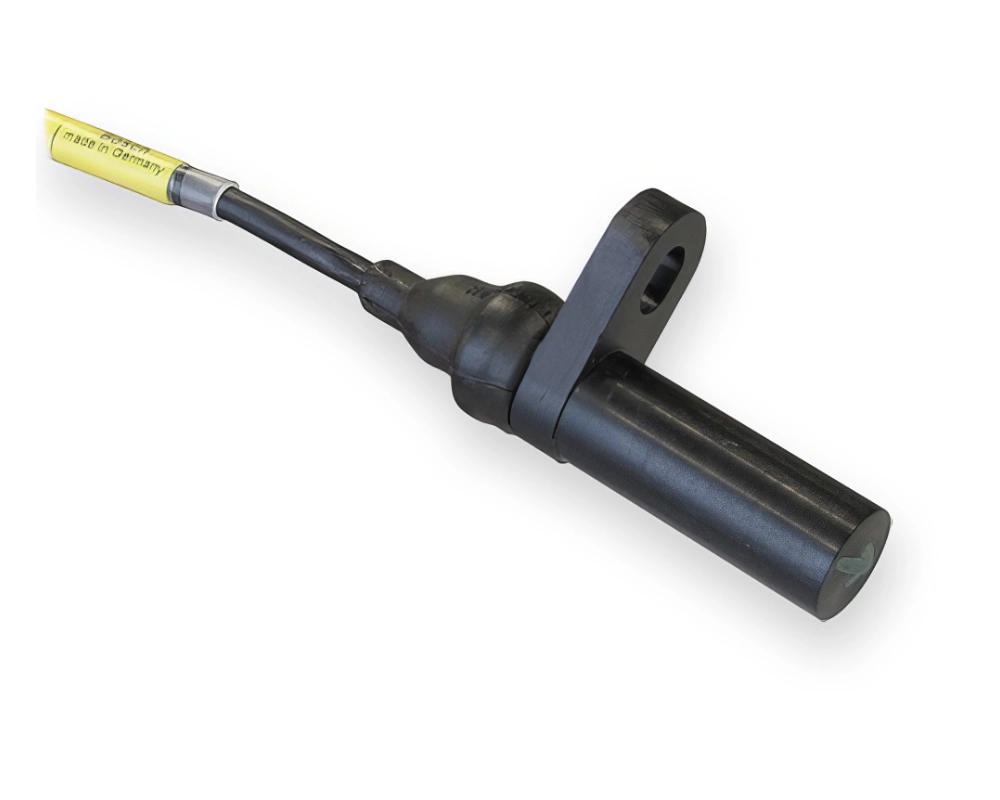

Speed Sensor Hall-Effect HA-Di
Features
- Max. frequency: ≤ 10 kHz
- Air gap: 0.4 to 1.0 mm
- Bore diameter: 12 mm
- Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
- Weight w/o wire: 12 g
Product Description
This sensor is designed for incremental measurement of rotational speed (e.g. crankshaft or wheel speed).
Due to the rotation of a ferromagnetic target wheel in front of the HA-Di, the magnetic field of the built-in magnet is modulated at the place of the sensors diff.
The main feature and benefit of this sensor is the detection of the rotational direction.
